Plastic Pet Bottle Label Peeler Removing Machine

group name: Plastic Bottles Label Remove Machine

Min Order: 1 piece

brand name: EVERGRAND

Nearest port for product export: Qingdao, Tianjin, Shanghai

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, Westem Union

update time: Thu, 17 Oct 2019 14:03:04 GMT

contact supplier

Paramtents

COLOR according to your need
Capacity 300-2000kg/h
MOQ 1 set
Production Capacity 98%
After-sales Service Provided Engineers available to service machinery overseas
Power(KW) 11-55kw
Dimension 4m*1.5m*1.7m

Packging & Delivery

500cm x150cm x180cm
Min Order1 piece

Briefing

This machine suitable for removing labels from PET water bottle, PE/PP bottle and other plastic bottle.

Detailed

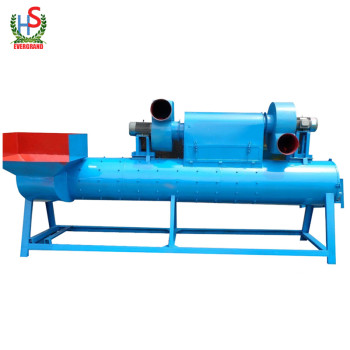

Plastic Pet Bottle Label Peeler Removing Machine

PET bottle Label removing/remover/separator machine is necessary part of PET bottle recycling line. It can remove the label automatically. This label remover machine can remove label without water, it can save a lot of water, reduce the water waste. The blade can change very easy, design stable speed, neednt to convert speed, easily operating.
PET bottle label remover machine complete change the previous way of removing the label by manual work. Because it is greatly improving the productivity and reducing the labor intensity.

Model

HXS-500

HXS-1000

HXS-2000

Power

11kw

15kw

30kw

capacity

500kg/h

1000kg/h

2000kg/h

diameter

160mm

219mm

325mm

Feeder Hopper Size

1000*1000mm

Height of Feeder Hopper

1.7m

1.8m

Blade

alloy

Weight

1200KG

1500KG

2200KG

Features:

1. Blades made by alloyed steel for long time use

2. Blades fixed by screws on the rotor, easy to adjust and change.

3. Blades and friction gap can be automatically adjusted according to the size of bottles which achieving best label-peeling effect.

4. There are several individual small doors on both sides of the machine for easy open, which is convenient to clean and maintain the inside parts, saving time and labor cost.

5. Bearing house installed outside the machine no dirty goes inside.

6. The rotor feeder part with screw so no bottles pop out.

7. Machine is made by solid frame; there is visual window on the top easy to check inside and cleaning

8. The bottom with mesh to drain out liquid that contained in bottles.

This mechanical label separating machine (label remover) is used for removal of label paper on pure water bottles and PET bottle.

The principles of medium speed rotating peeling by mechanical force and high pressure water flushing are applied, which enable paper removing rate

to be as high as over 90%. and mud and sand in the bottles can be screened and washed out, with remarkable effects.
